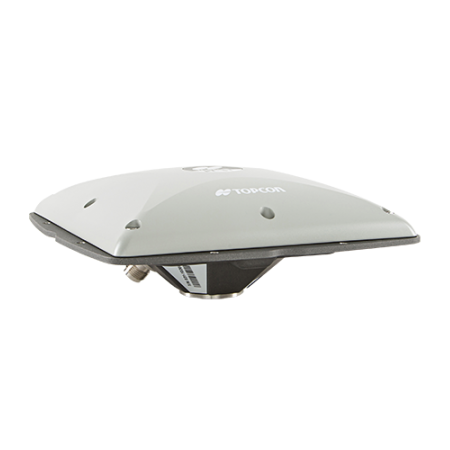

The Topcon PL-S1 dual frequency GNSS antenna is an affordable, IP67 certified antenna suitable for survey and mapping applications.
Description
DATASHEET :
PL-S1
Overview
The PL-S1 dual frequency GNSS antenna from Topcon is packaged in a lightweight and robust housing that provides excellent tracking performance for applications where modular or handheld GNSS receivers are required such as survey and mapping grade positioning.
The PL-S1 supports L1/L2 frequencies from GPS and GLONASS satellite constellations, as well as L-Band frequencies. This antenna has an IP67 rating for dust and water resistance and also provides a superior level of vibration and shock tolerance.
Features
- High-performance Fence Antenna technology
- Dual constellation, dual frequency geodetic antenna
- L-Band Compatible
- Rugged enclosure with high shock and vibration tolerance
Technical Specifications
| GPS: | L1/L2 |
| GLONASS: | L1/L2 |
| L-Band: | Compatible |
| Input Voltage: | 3-18 VDC. Reverse Polarity Protected |
| Power Consumption: | 55 mA (typical) |
| Operating Temperature: | -50 °C to 85 °C |
| Storage Temperature: | -55 °C to 85 °C |
| Dimensions: | 141.6 mm (W) x 141.6 mm (H) x 54.2 mm (D) |
| Dust/Water Protection: | IP67 |
| Shock Rating: | IEC 60068-2-29 Test Ea |
| Vibration Rating: | Random: IEC 60068-2-34, Test Fd Sinusoidal: IEC 60068-2-6, Test Fc |
| Drop: | 2 m pole drop to concrete |
| Bump: | IEC 60068-2-29 Test Eb |
Ordering
The PL-S1 dual frequency antenna from Topcon is available through TerrisGPS. If you would like more information regarding this product, feel free to get in touch with us by completing the Request Pricing form.
