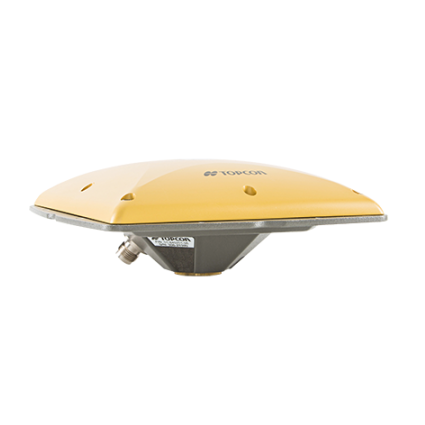

The Topcon PG-S1 dual frequency geodetic antenna is a lightweight and robust antenna making it an excellent choice for applications requiring tracking sensitivity and multipath rejection such as surveying and construction.
Description
DATASHEET :
PG-S1
Overview
The PG-S1 dual frequency geodetic antenna from Topcon provides excellent tracking performance for applications where modular or handheld GNSS receivers are required. It is built with patented Fence Antenna Technology by Topcon.
The PG-S1 is a high precision micro-centered antenna that supports L1/L2 frequencies from GPS and GLONASS satellite constellations, as well as L-Band frequencies. Its pairing with any Topcon modular or handheld GNSS receiver provides a high performance RTK system.
The PG-S1, with its ultra-rugged and compact design, is one of the most robust geodetic antennas on the market today. It offers IP67 dust and water resistance as well as a high level of vibration and shock tolerance.
Features
- Dual Frequency, Dual Constellation Geodetic Antenna
- Fence Antenna Technology for High-performance
- High Precision, Micro-centered Design
- Market Leading Ruggedized Packaging
- Superior Shock and Vibration Tolerance
- Compatible with L-Band
Technical Specifications
| GPS: | L1/L2 |
| GLONASS: | L1/L2 |
| L-Band: | Yes |
| Input Voltage: | 3-18 VDC. Reverse Polarity Protected |
| Power Consumption: | 55 mA (typical) |
| Operating Temperature: | -50 °C to 85 °C |
| Storage Temperature: | -55 °C to 85 °C |
| Dimensions: | 141.6 mm (W) x 141.6 mm (H) x 54.2 mm (D) |
| Dust/Water Protection: | IP67 |
| Shock Rating: | IEC 60068-2-29 Test Ea |
| Vibration Rating: | Random: IEC 60068-2-34, Test Fd Sinusoidal: IEC 60068-2-6, Test Fc |
| Drop: | 2 m pole drop to concrete |
| Bump: | IEC 60068-2-29 Test Eb |
Ordering
The PG-S1 dual frequency geodetic antenna from Topcon is available through TerrisGPS. If you would like more information regarding this product, feel free to get in touch with us by completing the Request Pricing form.
