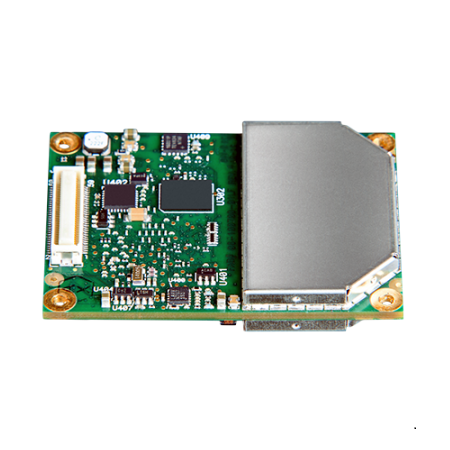

The Topcon B110 Receiver Board is an ultra-compact positioning engine that is capable of providing scalable positioning from sub-meter DGPS positioning to sub-centimeter RTK positioning.
Description
DATASHEET :
B110
Overview
The Topcon B110 Receiver Board is the latest ultra-compact GNSS solution which utilizes a cutting edge 226-channel Vanguard ASIC that allows it to provide scalable position feedback from sub-meter DGPS positioning all the way down to sub-centimeter RTK positioning.
The Topcon B110 Receiver Board is a great solution for many precise positioning applications. It is extremely easy to integrate due to its low power consumption and extensive peripheral support to its comprehensive communication interfaces.
Features
- High performance RTK engine with industry leading position update rate of 100 Hz
- Low power consumption
- Diverse set of interfaces available through a single connector for effective data exchange
- SD/MMC card interface support
- 226 universal channels for reliable “all-in-view”, dual frequency tracking
- Quartz Lock Loop (QLL) for continuous operation under intense vibration and shock
- Scalable performance via software option authorization (OAF)
Technical Specifications
| Channels: | 226 |
| GPS: | L1, L2, L2C |
| GLONASS: | L1, L2, L2C |
| SBAS-QZSS: | L1, L2C |
| Hot Start: | < 10 sec |
| Warm Start: | < 35 sec | Cold Start: | < 60 sec |
| Reacquisition: | < 1 sec |
| Size: | 40 mm x 55 mm x 10 mm |
| Weight: | < 20 g |
| Operating Temperature: | -40 °C to 85 °C |
| Storage Temperature: | -40 °C to 85 °C |
| Humidity: | 95%, non-condensing |
| Vibration Rating: | 4g Sine Vibe (SAEJ1211) 7.7g Random Vibe (MIL-STD 810F) |
| Shock / Crash Safety: | 30 g (IEC 68-2-27) |
| Acceleration: | 20 g |
| Input Voltage Range: | 3.4 to 4.5 VDC |
| Power Consumption: | 1.0 W typical |
| LNA Power: | 3.3 V (internal), 5.0 V (external) at 0 – 100 mA |
Ordering
The B110 receiver board from Topcon is available through TerrisGPS. If you would like more information regarding this product, feel free to get in touch with us by completing the Request Pricing form.
