The Stonex SC2000 has reached End of Life (EOL). Stonex has replaced the SC2000 with the SC2200 as an upgrade to the original receiver.
Description
DATASHEET :

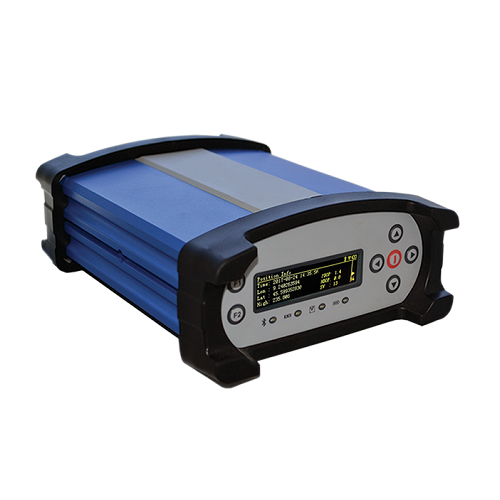

Stonex SC2000
Overview
The Stonex SC2000 GNSS reference receiver is able to track GPS, GLONASS, Galieo, BeiDou, QZSS, IRNSS and SBAS signals as well as L-Band. Encased in a rugged enclosure, the SC2000 can be used as either a stand-alone reference station or as part of a series of reference stations.
The Stonex SC2000 can be easily configured using a web interface, so a software interface is not required. Moreover, it has a wide OLED display making it easy for any user to configure.
The SC2000 is fully compatible with most common GPS network software and is typically used as an NTRIP server. It also works seamlessly with the Stonex software NTRIP CASTER. It manages many NTRIP connected rovers and, because of its rugged lightweight design, it can be powered by either DC Battery or AC Network to support a temporary GPS network (i.e. construction sites).
The SC2000 GNSS reference receiver runs on a 13,600 mAh battery and has a working time of up to 20 hours. It supports raw data logging with up to 50 Hz update rate. This device has 32 GB of internal memory which allows for the collection and storage of large amounts of data. Available communications include: WiFi and Bluetooth.
Features
- Tracks GPS, GLONASS, Galileo, BeiDou, QZSS and IRNSS signals as well as L-Band
- Proven Stonex GNSS technology
- Lithium battery that can last up to 20 hours between charges
- Wi-Fi, Bluetooth and Web UI
- Rugged enclosure for operation in harsh environments
Technical Specifications
| Channels: | 555 |
| GPS: | L1 C/A, L1C, L2C, L2P, L5 |
| GLONASS: | L1 C/A, L2C, L2P, L3, L5 |
| BeiDou: | B1, B2, B3 |
| Galileo: | E1, E5 AltBOC, E5a, E5b, E6 |
| QZSS: | L1 C/A, L1C, L2C, L5, L6 |
| IRNSS: | L5 |
| SBAS: | L1, L5 |
| L-Band: | Yes |
| Initialization Time: | Typically < 10 s |
| Initialization Reliability: | > 99.9 % |
| Static Horizontal Accuracy: | 3 mm + 0.1 ppm RMS |
| Static Vertical Accuracy: | 3.5 mm + 0.4 ppm RMS |
| Internal Memory: | 32 GB |
| External Memory: | Up to 32 GB |
| Bluetooth: | 2.1 GHz + EDR | Wi-Fi: | 802.11 b/g/n hotspot/client mode |
| Battery: | 13,600 mAh (up to 20 hours working time between charges) |
| Dimensions: | 222 mm x 164 mm x 79 mm |
| Weight: | 2.0 kg |
| Voltage Input: | 9 to 28 V DC |
| Operating Temperature: | -40 °C to 65 °C |
| Storage Temperature: | -40 °C to 80 °C |
| Waterproof/Dustproof: | IP67 |
| Shock: | Designed to endure a 1.2 m pole drop on concrete floor with no damage |
| Vibration: | Vibration resistent |
Ordering
The SC2000 GNSS reference receiver from Stonex is available through TerrisGPS. If you would like more information regarding this product, feel free to get in touch with us by completing the Request Pricing form.
