The Harxon HX-GS288A Mini GNSS Survey Antenna has reached End of Life (EOL). Please contact us to determine the best replacement product for your application.
Description
Overview

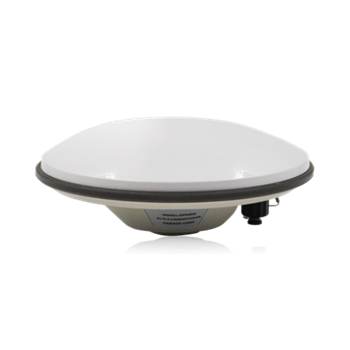

The Harxon HX-GS288A mini GNSS survey antenna receives GPS L1 and GLONASS L1 frequencies, which can be used in land survey, marine survey and agriculture applications. Customers can use the same antenna for GPS only or dual constellation applications.
It has high gain ensure the signal receiving performance of satellites at low elevation angles. The phase center of this antenna remains constant as the azimuth and elevation angle of the satellites change. Signal reception is unaffected by the rotation of the antenna or satellite elevation, so placement and installation of the antenna can be completed with ease.
All of Harxon’s antennas provide invariant response over the full range of operating voltages and operating temperatures.
Features
- Supports GPS L1 and GLONASS L1 frequencies
- Multi feed design to ensure the superposition of phase center and geometrical center, and minimize the influence to measurement error
- Very low noise figure
- GIS/RTK applications
- Small and lightweight
- 5/8 inch x 11 Mounting
Technical Specifications
| Performance | |
| GPS: | L1 |
| GLONASS: | L1 |
| Nominal Impedance: | 50Ω |
| Polarization: | RHCP |
| Axial Ratio: | ≤3dB |
| Azimuth Coverage: | 360° |
| Output/Input VSWR | ≤2.0 |
| Peak Gain: | ≥4.5dBi |
| Phase Center Error: | ±2 mm |
| LNA Gain: | 40±2dB |
| Noise Figure: | ≤2dB |
| Operation Voltage: | +3.3 to + 12VDC |
| Operation Current: | 45mA (maximum) |
| Group Delay Ripple: | <5ns |
| Physical | |
| Dimensions: | φ 152 x 62.2 mm |
| Connector: | TNC female |
| Weight: | 374 g |
| Environmental | |
| Operating Temperature: | -40 °C to +85 °C |
| Storage Temperature: | -55 °C to +85 °C |
| Humidity: | 95% non-condensing |
Ordering
The HX-GS288A mini GNSS survey antenna from Harxon is available through TerrisGPS. Please use the Request Pricing form to contact us for further information.
