Description
Overview

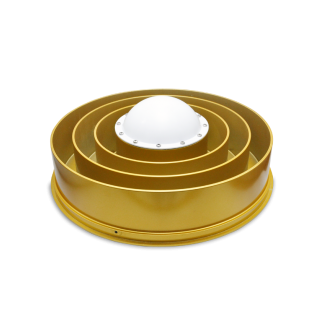

The HX-GG486A GNSS choke ring antenna receives GPS and GLONASS frequencies with a integrated radome, which contains Harxon advanced antenna technology. It has become the preferred product for CORS station and geodetic base station applications.
The HX-GG486A’s unique wideband antenna technology design provides superior low elevation satellite tracking, multipath reduction and sub-millimeter phase center stability. The new low noise amplifier (LNA) is used to provide exceptional low measurement noise for superior measurement quality with excellent out of band rejection. The new LNA technology also has high gain which ensures the operation with long cable (100 meters +).
Features
- Supports GPS L1/L2, GLONASS L1/L2 signals
- Ideal for fixed reference stations and GNSS infrastructure networks
- Water & dust-proof design
- Sub-millimeter phase center repeatability
- LNA has high gain which ensures the operation with long cable (100 meters +)
Technical Specifications
| Performance | |
| GPS: | L1, L2 |
| GLONASS: | L1, L2 |
| Nominal Impedance: | 50Ω |
| Polarization: | RHCP |
| Axial Ratio: | ≤3dB |
| Azimuth Coverage: | 360° |
| Output VSWR | ≤2.0 |
| Peak Gain: | ≥7dBi |
| Phase Center Error: | ±1 mm |
| LNA Gain: | 50dB (typical) |
| Noise Figure: | ≤2dB |
| Operation Voltage: | +3 to + 1VDC |
| Operation Current: | ≤60mA (maximum) |
| Group Delay Ripple: | <5ns |
| Physical | |
| Dimensions: | φ 332 x 261 mm |
| Connector: | TNC female |
| Weight: | 7 kg |
| Environmental | |
| Operating Temperature: | -45 °C to +85 °C |
| Storage Temperature: | -55 °C to +85 °C |
| Humidity: | 95% non-condensing |
Ordering
The HX-GG486A GNSS choke ring antenna from Harxon is available through TerrisGPS. Please use the Request Pricing form to contact us for further information.
