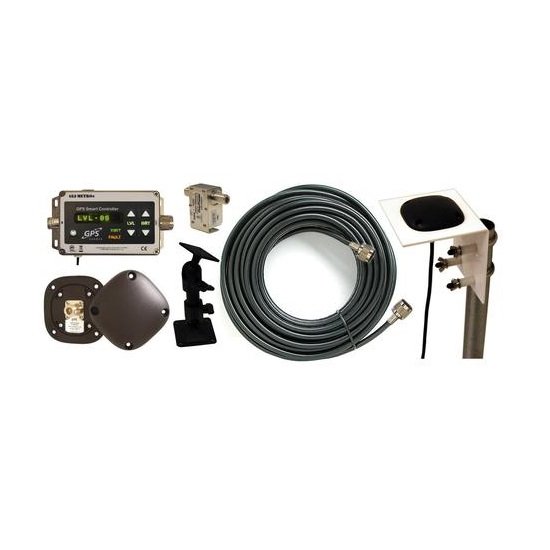

GPS Source's GLI METROe RK is an extensive GPS amplifier system containing the amplifier, two antennas (active and passive), two mountings (swivel and pole), surge suppressor, and cable. It is the only CE certified smart amplifier kit on the market.
Description
DATASHEET :
GLI-METROe RK
Overview
GPS Source’s GLI-METROe smart amplifier is the only one on the market that has been CE-certified. It integrates state-of-the-art GPS amplifier technology. With its ease of use, it is optimal for the public and commercial sectors.
Based on high-performance military systems, the unit handles L1 GPS signals. L2 signal capability is optional for approved applications. Signal lock is set to -85dBm; oscillation detection/mitigation is included.
GLI-METROe maintains a fixed output signal level via automatic control. This occurs despite uncertain gain or loss in the antenna receiver cable network. The device is called “smart,” because it conditions the signal automatically and averts change in performance.
This product is only available to approved/licensed parties, including international customers outside the United States, Federal Government or agencies operating under its direction, parties having a STA or Experimental License under FCC rules part 5, parties operating in an anechoic chamber.
Features
- Exacting control of output signal level
- Handles L1 (L1/L2 optional)
- High frequency selectivity
- Ideal for GPS retransmission applications
- Built-in troubleshooting
- Built according to military standards
Technical Specifications
| Bandwidth: | L1, 1575.42 plus or minus 15 MHz | |
| Number of ports: | One | |
| Size: | 149.1 mm L x 80 mm W x 48.3 mm H | |
| Weight: | 499 grams | |
| Operating temperature: | -40 degrees to +85 degrees Celsius | |
| Options: | L1/L2 filter, Bluetooth, pole mount, AC/DC power supply, coaxial cable, surge protector, swivel mount, antenna monitor, active or passive antenna |
Ordering
The GLI-METROe amplifier from GPS Source can be ordered through TerrisGPS. Please send us a message by completing the Request Pricing form if you have any question.
- SKU for Standard Configuration: METROe-RK
